Comparative Analysis of Pedestrian Dynamics Models

Objective

This notebook compares four pedestrian dynamics models by simulating agent behavior in a
structured environment. Using simplified scenarios, we analyze how each model handles
navigation, obstacle avoidance, and agent interactions. This comparison reveals the strengths
and weaknesses of each approach, helping inform model selection when using JuPedSim.

When choosing a pedestrian dynamics model in JuPedSim, the decision largely depends on the
specific scenario you want to simulate or the behavior you want to reproduce. The available
models can be divided into two main categories: force-based and velocity-based models,
each with their own strengths and limitations.

Force-Based Models

Force-based models, which include the Social Force Model (SFM) and the Generalized
Centrifugal Force Model (GCFM), excel at simulating physical interactions between pedestrians.
These models are particularly effective at capturing pushing behavior in dense crowds, making
them ideal for evacuation scenarios or situations where physical contact between pedestrians
is common. The GCFM offers some improvements over the basic SFM, particularly in handling
body shape effects.

Velocity-Based Models

On the other hand, velocity-based models like the Collision-Free Model (CFM) and the
Anticipation Velocity Model (AVM) are better suited for normal walking situations where
collision avoidance is the primary concern. These models typically produce smoother, more
realistic trajectories in regular-density scenarios. The AVM, in particular, stands out for
its superior collision avoidance capabilities and ability to reproduce lane formation behavior,
as demonstrated in recent research.

Computational Efficiency

When it comes to computational efficiency, velocity-based models generally have an advantage.
The CFM offers the fastest execution times, while the AVM provides a good balance between
computational efficiency and realistic behavior simulation. Force-based models, while more
computationally intensive, are necessary when accurate physical interaction modeling is crucial.

Model Selection Guidance

The choice of model ultimately comes down to your specific requirements:

• Force-based models (SFM, GCFM): Best for emergency evacuations or crowded environments
  with significant physical interactions.

• Velocity-based models (AVM): Ideal for typical pedestrian scenarios requiring smooth
  navigation and realistic avoidance behavior.

• Collision-Free Model (CFM): Suitable when computational resources are limited and
  physical interactions are not critical.

The key is to understand that no single model is universally superior—each has its place
depending on the specific requirements of your simulation scenario.

So as a final facit, which model to use? The answer is: it depends.

Models Under Investigation

In this notebooks the models compared are:

1. Collision-Free Speed Model (CSM):
   A velocity-based model focused on ensuring agents move without collisions
   by dynamically adjusting their speeds.

2. Anticipation Velocity Model (AVM):
   A model that incorporates anticipation and reaction times, allowing agents
   to predict and avoid potential collisions.

3. Social Force Model (SFM): A force-based model where agents are influenced
   by attractive forces toward goals and repulsive forces from obstacles and other agents.

4. Generalized Centrifugal Force Model (GCFM):
   An enhanced force-based model where agents experience centrifugal forces
   to better simulate realistic avoidance behavior.

Note:
All models are utilized with their default parameter settings as defined in JuPedSim.

Show code cell source

Hide code cell source

import pathlib

import jupedsim as jps
import matplotlib.pyplot as plt
import numpy as np
import pedpy
from jupedsim.internal.notebook_utils import animate, read_sqlite_file
from shapely import Polygon
from shapely.geometry import Point
from shapely.ops import unary_union


def initialize_simulation(
    model, agent_parameters, geometry, goals, positions, speeds, trajectory_file
):
    simulation = jps.Simulation(
        model=model,
        geometry=geometry,
        dt=0.01,
        trajectory_writer=jps.SqliteTrajectoryWriter(
            output_file=pathlib.Path(trajectory_file), every_nth_frame=5
        ),
    )

    exit_ids = [simulation.add_exit_stage(goal) for goal in goals]
    journey = jps.JourneyDescription(exit_ids)
    journey_id = simulation.add_journey(journey)
    centroids = [polygon.centroid.coords[0] for polygon in goals]
    orientations = [
        np.array(centroid) - np.array(position)
        for centroid, position in zip(centroids, positions)
    ]
    for pos, v0, exit_id, orientation in zip(
        positions, speeds, exit_ids, orientations
    ):
        if agent_parameters == jps.AnticipationVelocityModelAgentParameters:
            simulation.add_agent(
                agent_parameters(
                    journey_id=journey_id,
                    stage_id=exit_id,
                    desired_speed=v0,
                    position=pos,
                    anticipation_time=1,
                    reaction_time=0.3,
                )
            )
        elif agent_parameters == jps.SocialForceModelAgentParameters:
            simulation.add_agent(
                agent_parameters(
                    journey_id=journey_id,
                    stage_id=exit_id,
                    desiredSpeed=v0,
                    position=pos,
                    orientation=orientation,
                )
            )
        elif (
            agent_parameters
            == jps.GeneralizedCentrifugalForceModelAgentParameters
        ):
            simulation.add_agent(
                agent_parameters(
                    journey_id=journey_id,
                    stage_id=exit_id,
                    desired_speed=v0,
                    position=pos,
                    orientation=orientation,
                )
            )
        else:
            simulation.add_agent(
                agent_parameters(
                    journey_id=journey_id,
                    stage_id=exit_id,
                    position=pos,
                    desired_speed=v0,
                )
            )

    return simulation


def plot_simulation_configuration(geometry, starting_positions, exit_areas):
    """Plot setup for visual inspection."""
    walkable_area = pedpy.WalkableArea(geometry)
    axes = pedpy.plot_walkable_area(walkable_area=walkable_area)
    for exit_area in exit_areas:
        axes.fill(*exit_area.exterior.xy, color="indianred")

    axes.scatter(*zip(*starting_positions), label="Starting Position")
    axes.set_xlabel("x/m")
    axes.set_ylabel("y/m")
    axes.set_aspect("equal")
    axes.grid(True, alpha=0.3)


def plot_evacuation_times(times_dict, figsize=(10, 6)):
    """
    Plot evacuation times for different pedestrian models.
    """
    fig = plt.figure(figsize=figsize)

    bars = plt.bar(list(times_dict.keys()), list(times_dict.values()))

    plt.title("Evacuation Times by Model")
    plt.ylabel("Time (seconds)")
    plt.grid(axis="y", linestyle="--", alpha=0.3)

    # Add value labels on top of each bar
    for bar in bars:
        height = bar.get_height()
        plt.text(
            bar.get_x() + bar.get_width() / 2.0,
            height,
            f"{height:.1f}s",
            ha="center",
            va="bottom",
        )

    plt.tight_layout()
    return fig


def run_simulation(simulation, max_iterations=4000):
    while (
        simulation.agent_count() > 0
        and simulation.iteration_count() < max_iterations
    ):
        simulation.iterate()
    simulation._writer.close()
    print(f"Evacuation time: {simulation.elapsed_time():.2f} s")
    return simulation.elapsed_time()


width = 600
height = 600

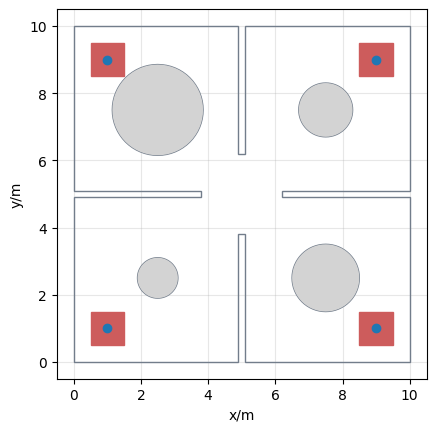

Scenario 1: Crossing Paths in Rooms

Four agents navigate between interconnected rooms with obstacles. Each agent aims to reach the diagonally opposite goal. Agents are expected to plan paths around obstacles while interacting with other agents in the corridors.

Show code cell source

Hide code cell source

def create_geometry_scenario1():
    outer_boundary = Polygon([(0, 0), (10, 0), (10, 10), (0, 10)])
    corridor_walls = [
        Polygon([(4.9, 0), (5.1, 0), (5.1, 3.8), (4.9, 3.8)]),
        Polygon([(4.9, 6.2), (5.1, 6.2), (5.1, 10), (4.9, 10)]),
        Polygon([(0, 4.9), (3.8, 4.9), (3.8, 5.1), (0, 5.1)]),
        Polygon([(6.2, 4.9), (10, 4.9), (10, 5.1), (6.2, 5.1)]),
    ]

    radius = 1.0
    circular_obstacles = [
        Point(2.5, 2.5).buffer(radius - 0.4),
        Point(7.5, 2.5).buffer(radius),
        Point(2.5, 7.5).buffer(radius + 0.35),
        Point(7.5, 7.5).buffer(radius - 0.2),
    ]

    all_obstacles = corridor_walls + circular_obstacles

    geometry = outer_boundary.difference(unary_union(all_obstacles))
    return geometry


def define_positions_scenario1():
    """Define initial positions and desired speeds."""
    positions = [(1, 1), (9, 9), (1, 9), (9, 1)]
    speeds = [1.0, 1.0, 1.0, 1.0]
    return positions, speeds


def define_goals_scenario1():
    """Define goal polygons."""
    goals = [
        Polygon([(8.5, 8.5), (9.5, 8.5), (9.5, 9.5), (8.5, 9.5)]),
        Polygon([(0.5, 0.5), (1.5, 0.5), (1.5, 1.5), (0.5, 1.5)]),
        Polygon([(8.5, 0.5), (9.5, 0.5), (9.5, 1.5), (8.5, 1.5)]),
        Polygon([(0.5, 8.5), (1.5, 8.5), (1.5, 9.5), (0.5, 9.5)]),
    ]
    return goals


geometry = create_geometry_scenario1()
goals = define_goals_scenario1()
positions, speeds = define_positions_scenario1()
plot_simulation_configuration(geometry, positions, goals)
times_dict = {}

CSM Simulation

model = "CFM"
trajectory_file = f"{model}.sqlite"
simulation = initialize_simulation(
    jps.CollisionFreeSpeedModelV2(),
    jps.CollisionFreeSpeedModelV2AgentParameters,
    geometry,
    goals,
    positions,
    speeds,
    trajectory_file,
)
times_dict[model] = run_simulation(simulation, max_iterations=5000)
trajectories, walkable_area = read_sqlite_file(trajectory_file)
animate(
    trajectories,
    walkable_area,
    title_note=model,
    every_nth_frame=5,
    width=width,
    height=height,
)

Evacuation time: 12.92 s

AVM Simulation

model = "AVM"
trajectory_file = f"{model}.sqlite"
simulation = initialize_simulation(
    jps.AnticipationVelocityModel(),
    jps.AnticipationVelocityModelAgentParameters,
    geometry,
    goals,
    positions,
    speeds,
    trajectory_file,
)
times_dict[model] = run_simulation(simulation, max_iterations=5000)
trajectories, walkable_area = read_sqlite_file(trajectory_file)
animate(
    trajectories,
    walkable_area,
    title_note=model,
    every_nth_frame=5,
    width=width,
    height=height,
)

Evacuation time: 14.05 s

SFM Simulation

model = "SFM"
trajectory_file = f"{model}.sqlite"
simulation = initialize_simulation(
    jps.SocialForceModel(),
    jps.SocialForceModelAgentParameters,
    geometry,
    goals,
    positions,
    speeds,
    trajectory_file,
)
times_dict[model] = run_simulation(simulation, max_iterations=5000)
trajectories, walkable_area = read_sqlite_file(trajectory_file)
animate(
    trajectories,
    walkable_area,
    title_note=model,
    every_nth_frame=5,
    width=width,
    height=height,
)

/tmp/ipykernel_3216/1762482793.py:49: DeprecationWarning:

'desiredSpeed' is deprecated, use 'desired_speed' instead.

SocialForceModelAgentParameters(position=(1, 1), orientation=array([8., 8.]), journey_id=3, stage_id=9, velocity=(0.0, 0.0), mass=80.0, desired_speed=1.0, reaction_time=0.5, agent_scale=2000, obstacle_scale=2000, force_distance=0.08, radius=0.3)
SocialForceModelAgentParameters(position=(9, 9), orientation=array([-8., -8.]), journey_id=3, stage_id=10, velocity=(0.0, 0.0), mass=80.0, desired_speed=1.0, reaction_time=0.5, agent_scale=2000, obstacle_scale=2000, force_distance=0.08, radius=0.3)
SocialForceModelAgentParameters(position=(1, 9), orientation=array([ 8., -8.]), journey_id=3, stage_id=11, velocity=(0.0, 0.0), mass=80.0, desired_speed=1.0, reaction_time=0.5, agent_scale=2000, obstacle_scale=2000, force_distance=0.08, radius=0.3)
SocialForceModelAgentParameters(position=(9, 1), orientation=array([-8.,  8.]), journey_id=3, stage_id=12, velocity=(0.0, 0.0), mass=80.0, desired_speed=1.0, reaction_time=0.5, agent_scale=2000, obstacle_scale=2000, force_distance=0.08, radius=0.3)

Evacuation time: 31.18 s

GCFM Simulation

model = "GCFM"
trajectory_file = f"{model}.sqlite"
simulation = initialize_simulation(
    jps.GeneralizedCentrifugalForceModel(),
    jps.GeneralizedCentrifugalForceModelAgentParameters,
    geometry,
    goals,
    positions,
    speeds,
    trajectory_file,
)
times_dict[model] = run_simulation(simulation, max_iterations=5000)
trajectories, walkable_area = read_sqlite_file(trajectory_file)
animate(
    trajectories,
    walkable_area,
    title_note=model,
    every_nth_frame=5,
    width=width,
    height=height,
)

Evacuation time: 50.00 s

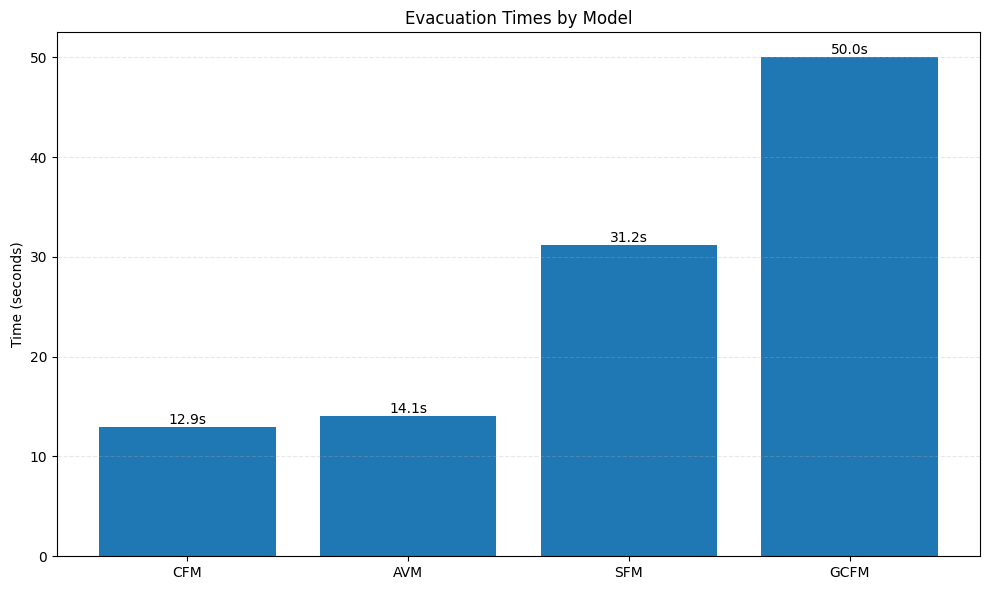

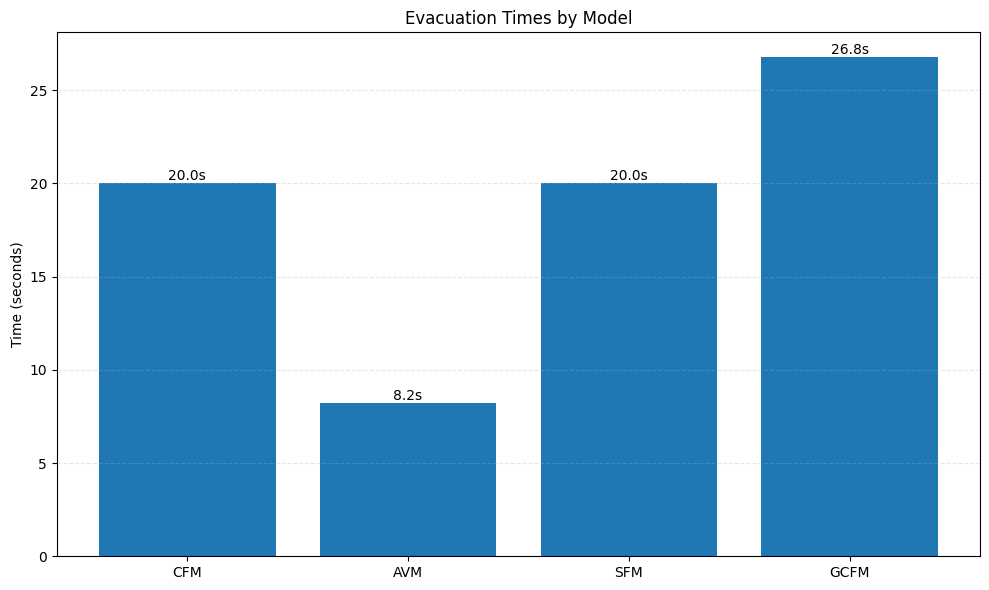

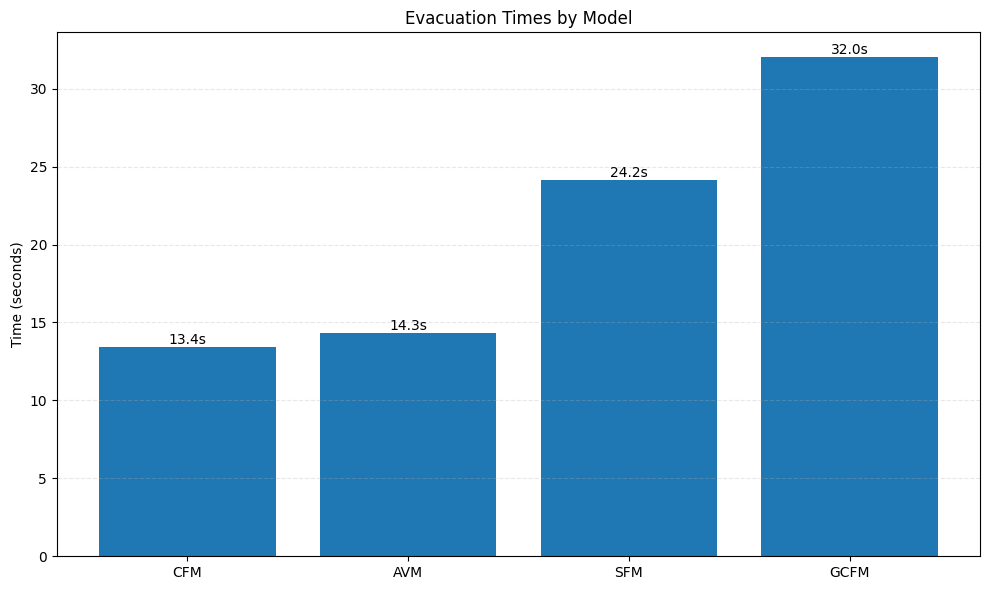

Evacuation times

Show code cell source

Hide code cell source

fig = plot_evacuation_times(times_dict)
plt.show()

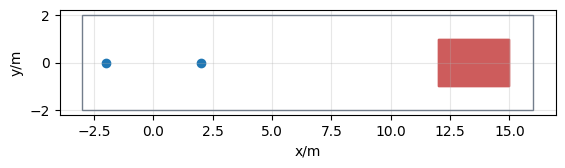

Scenario 2: Following Behavior

A single-line setup where one agent follows another slower-moving agent, testing how the models handle speed adjustments and eventually overtaking.

Show code cell source

Hide code cell source

def create_geometry_scenario2():
    geometry = Polygon([(-3, -2), (16, -2), (16, 2), (-3, 2)])
    return geometry


def define_positions_scenario2():
    """Define initial positions and desired speeds."""
    positions = [
        (-2, 0),
        (2, 0),
    ]
    speeds = [
        1.0,
        0.0,
    ]
    return positions, speeds


def define_goals_scenario2():
    """Define goal polygons."""
    goals = [
        Polygon([(12, -1), (15, -1), (15, 1), (12, 1)]),
        Polygon([(12, -1), (15, -1), (15, 1), (12, 1)]),
    ]
    return goals


geometry = create_geometry_scenario2()
positions, speeds = define_positions_scenario2()
goals = define_goals_scenario2()
plot_simulation_configuration(geometry, positions, goals)
times_dict = {}

CSM Simulation

model = "CFM"
trajectory_file = f"{model}.sqlite"
simulation = initialize_simulation(
    jps.CollisionFreeSpeedModelV2(),
    jps.CollisionFreeSpeedModelV2AgentParameters,
    geometry,
    goals,
    positions,
    speeds,
    trajectory_file,
)
times_dict[model] = run_simulation(simulation, max_iterations=2000)
trajectories, walkable_area = read_sqlite_file(trajectory_file)
animate(
    trajectories,
    walkable_area,
    title_note=model,
    every_nth_frame=5,
    width=width,
    height=height,
)

Evacuation time: 20.00 s

AVM Simulation

model = "AVM"
trajectory_file = f"{model}.sqlite"
simulation = initialize_simulation(
    jps.AnticipationVelocityModel(),
    jps.AnticipationVelocityModelAgentParameters,
    geometry,
    goals,
    positions,
    speeds,
    trajectory_file,
)
times_dict[model] = run_simulation(simulation, max_iterations=2000)
trajectories, walkable_area = read_sqlite_file(trajectory_file)
animate(
    trajectories,
    walkable_area,
    title_note=model,
    every_nth_frame=5,
    width=width,
    height=height,
)

Evacuation time: 20.00 s

SFM Simulation

model = "SFM"
trajectory_file = f"{model}.sqlite"
simulation = initialize_simulation(
    jps.SocialForceModel(),
    jps.SocialForceModelAgentParameters,
    geometry,
    goals,
    positions,
    speeds,
    trajectory_file,
)
times_dict[model] = run_simulation(simulation, max_iterations=2000)
trajectories, walkable_area = read_sqlite_file(trajectory_file)
animate(
    trajectories,
    walkable_area,
    title_note=model,
    every_nth_frame=5,
    width=width,
    height=height,
)

/tmp/ipykernel_3216/1762482793.py:49: DeprecationWarning:

'desiredSpeed' is deprecated, use 'desired_speed' instead.

SocialForceModelAgentParameters(position=(-2, 0), orientation=array([15.5, -0. ]), journey_id=7, stage_id=21, velocity=(0.0, 0.0), mass=80.0, desired_speed=1.0, reaction_time=0.5, agent_scale=2000, obstacle_scale=2000, force_distance=0.08, radius=0.3)
SocialForceModelAgentParameters(position=(2, 0), orientation=array([11.5, -0. ]), journey_id=7, stage_id=22, velocity=(0.0, 0.0), mass=80.0, desired_speed=0.8, reaction_time=0.5, agent_scale=2000, obstacle_scale=2000, force_distance=0.08, radius=0.3)
Evacuation time: 14.51 s

GCFM Simulation

model = "GCFM"
trajectory_file = f"{model}.sqlite"
simulation = initialize_simulation(
    jps.GeneralizedCentrifugalForceModel(),
    jps.GeneralizedCentrifugalForceModelAgentParameters,
    geometry,
    goals,
    positions,
    speeds,
    trajectory_file,
)
times_dict[model] = run_simulation(simulation, max_iterations=2000)
trajectories, walkable_area = read_sqlite_file(trajectory_file)
animate(
    trajectories,
    walkable_area,
    title_note=model,
    every_nth_frame=5,
    width=width,
    height=height,
)

Evacuation time: 20.00 s

Scenario 3: Head-on Encounter

Two agents approach each other on a straight line, evaluating how different models resolve direct confrontation and determine which agent yields or how they negotiate passing space.

Show code cell source

Hide code cell source

def create_geometry_scenario3():
    geometry = Polygon([(-10, -2), (10, -2), (10, 2), (-10, 2)])
    return geometry


def define_positions_scenario3():
    """Define initial positions and desired speeds."""
    positions = [
        (-2, 0),
        (2, 0),
    ]
    speeds = [
        1.0,
        1.0,
    ]
    return positions, speeds


def define_goals_scenario3():
    """Define goal polygons."""
    goals = [
        Polygon([(6, -1), (9, -1), (9, 1), (6, 1)]),
        Polygon([(-9, -1), (-6, -1), (-6, 1), (-9, 1)]),
    ]
    return goals


geometry = create_geometry_scenario3()
positions, speeds = define_positions_scenario3()
goals = define_goals_scenario3()

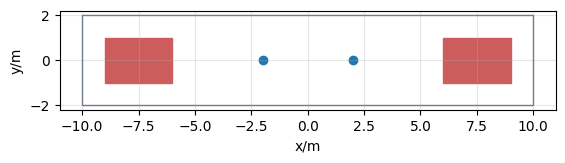

plot_simulation_configuration(geometry, positions, goals)
times_dict = {}

CSM Simulation

model = "CFM"
trajectory_file = f"{model}.sqlite"
simulation = initialize_simulation(
    jps.CollisionFreeSpeedModelV2(),
    jps.CollisionFreeSpeedModelV2AgentParameters,
    geometry,
    goals,
    positions,
    speeds,
    trajectory_file,
)
times_dict[model] = run_simulation(simulation, max_iterations=2000)
trajectories, walkable_area = read_sqlite_file(trajectory_file)
animate(
    trajectories,
    walkable_area,
    title_note=model,
    every_nth_frame=5,
    width=width,
    height=height,
)

Evacuation time: 20.00 s

AVM Simulation

model = "AVM"
trajectory_file = f"{model}.sqlite"
simulation = initialize_simulation(
    jps.AnticipationVelocityModel(),
    jps.AnticipationVelocityModelAgentParameters,
    geometry,
    goals,
    positions,
    speeds,
    trajectory_file,
)
times_dict[model] = run_simulation(simulation, max_iterations=2000)
trajectories, walkable_area = read_sqlite_file(trajectory_file)
animate(
    trajectories,
    walkable_area,
    title_note=model,
    every_nth_frame=5,
    width=width,
    height=height,
)

Evacuation time: 8.22 s

SFM Simulation

model = "SFM"
trajectory_file = f"{model}.sqlite"
simulation = initialize_simulation(
    jps.SocialForceModel(),
    jps.SocialForceModelAgentParameters,
    geometry,
    goals,
    positions,
    speeds,
    trajectory_file,
)
times_dict[model] = run_simulation(simulation, max_iterations=2000)
trajectories, walkable_area = read_sqlite_file(trajectory_file)
animate(
    trajectories,
    walkable_area,
    title_note=model,
    every_nth_frame=5,
    width=width,
    height=height,
)

/tmp/ipykernel_3216/1762482793.py:49: DeprecationWarning:

'desiredSpeed' is deprecated, use 'desired_speed' instead.

SocialForceModelAgentParameters(position=(-2, 0), orientation=array([ 9.5, -0. ]), journey_id=11, stage_id=29, velocity=(0.0, 0.0), mass=80.0, desired_speed=1.0, reaction_time=0.5, agent_scale=2000, obstacle_scale=2000, force_distance=0.08, radius=0.3)
SocialForceModelAgentParameters(position=(2, 0), orientation=array([-9.5, -0. ]), journey_id=11, stage_id=30, velocity=(0.0, 0.0), mass=80.0, desired_speed=1.0, reaction_time=0.5, agent_scale=2000, obstacle_scale=2000, force_distance=0.08, radius=0.3)
Evacuation time: 20.00 s

GCFM Simulation

model = "GCFM"
trajectory_file = f"{model}.sqlite"
simulation = initialize_simulation(
    jps.GeneralizedCentrifugalForceModel(),
    jps.GeneralizedCentrifugalForceModelAgentParameters,
    geometry,
    goals,
    positions,
    speeds,
    trajectory_file,
)
times_dict[model] = run_simulation(simulation, max_iterations=5000)
trajectories, walkable_area = read_sqlite_file(trajectory_file)
animate(
    trajectories,
    walkable_area,
    title_note=model,
    every_nth_frame=5,
    width=width,
    height=height,
)

Evacuation time: 26.77 s

Evacuation times

Show code cell source

Hide code cell source

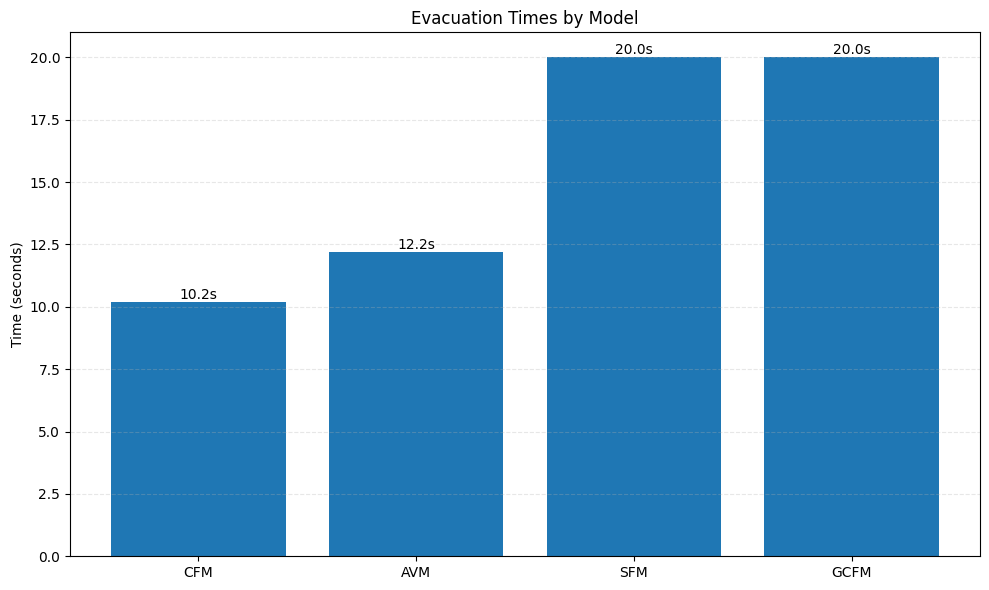

fig = plot_evacuation_times(times_dict)
plt.show()

Scenario 4: Perpendicular Crossing

Two agents move on intersecting paths - one traveling upward and another moving left to right - creating a potential collision point. This tests how models handle collision avoidance when agents approach at right angles.

Show code cell source

Hide code cell source

def create_geometry_scenario4():
    geometry = Polygon([(-6, -6), (6, -6), (6, 6), (-6, 6)])
    return geometry


def define_positions_scenario4():
    """Define initial positions and desired speeds."""
    positions = [(-2, 0), (0, -2)]
    speeds = [1.0, 0.99]
    return positions, speeds


def define_goals_scenario4():
    """Define goal polygons."""
    goals = [
        Polygon([(5, -2), (6, -2), (6, 2), (5, 2)]),
        Polygon([(-2, 5), (-2, 6), (2, 6), (2, 5)]),
    ]
    return goals


geometry = create_geometry_scenario4()
positions, speeds = define_positions_scenario4()
goals = define_goals_scenario4()

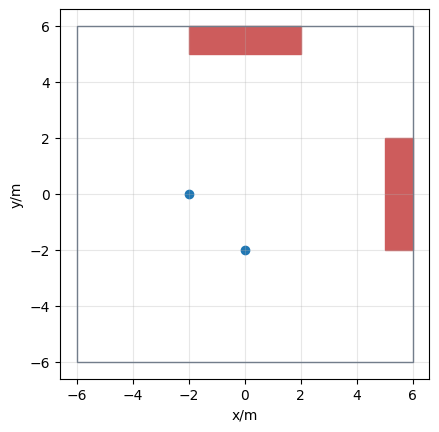

plot_simulation_configuration(geometry, positions, goals)
times_dict = {}

CSM Simulation

model = "CFM"
trajectory_file = f"{model}.sqlite"
simulation = initialize_simulation(
    jps.CollisionFreeSpeedModelV2(),
    jps.CollisionFreeSpeedModelV2AgentParameters,
    geometry,
    goals,
    positions,
    speeds,
    trajectory_file,
)
times_dict[model] = run_simulation(simulation, max_iterations=2000)
trajectories, walkable_area = read_sqlite_file(trajectory_file)
animate(
    trajectories,
    walkable_area,
    title_note=model,
    every_nth_frame=5,
    width=width,
    height=height,
)

Evacuation time: 9.33 s

AVM Simulation

model = "AVM"
trajectory_file = f"{model}.sqlite"
simulation = initialize_simulation(
    jps.AnticipationVelocityModel(),
    jps.AnticipationVelocityModelAgentParameters,
    geometry,
    goals,
    positions,
    speeds,
    trajectory_file,
)
times_dict[model] = run_simulation(simulation, max_iterations=2000)
trajectories, walkable_area = read_sqlite_file(trajectory_file)
animate(
    trajectories,
    walkable_area,
    title_note=model,
    every_nth_frame=5,
    width=width,
    height=height,
)

Evacuation time: 7.51 s

SFM Simulation

model = "SFM"
trajectory_file = f"{model}.sqlite"
simulation = initialize_simulation(
    jps.SocialForceModel(),
    jps.SocialForceModelAgentParameters,
    geometry,
    goals,
    positions,
    speeds,
    trajectory_file,
)
times_dict[model] = run_simulation(simulation, max_iterations=2000)
trajectories, walkable_area = read_sqlite_file(trajectory_file)
animate(
    trajectories,
    walkable_area,
    title_note=model,
    every_nth_frame=5,
    width=width,
    height=height,
)

/tmp/ipykernel_3216/1762482793.py:49: DeprecationWarning:

'desiredSpeed' is deprecated, use 'desired_speed' instead.

SocialForceModelAgentParameters(position=(-2, 0), orientation=array([ 7.5, -0. ]), journey_id=15, stage_id=37, velocity=(0.0, 0.0), mass=80.0, desired_speed=1.0, reaction_time=0.5, agent_scale=2000, obstacle_scale=2000, force_distance=0.08, radius=0.3)
SocialForceModelAgentParameters(position=(0, -2), orientation=array([-0. ,  7.5]), journey_id=15, stage_id=38, velocity=(0.0, 0.0), mass=80.0, desired_speed=0.99, reaction_time=0.5, agent_scale=2000, obstacle_scale=2000, force_distance=0.08, radius=0.3)
Evacuation time: 10.20 s

GCFM Simulation

model = "GCFM"
trajectory_file = f"{model}.sqlite"
simulation = initialize_simulation(
    jps.GeneralizedCentrifugalForceModel(),
    jps.GeneralizedCentrifugalForceModelAgentParameters,
    geometry,
    goals,
    positions,
    speeds,
    trajectory_file,
)
times_dict[model] = run_simulation(simulation, max_iterations=2000)
trajectories, walkable_area = read_sqlite_file(trajectory_file)
animate(
    trajectories,
    walkable_area,
    title_note=model,
    every_nth_frame=5,
    width=width,
    height=height,
)

Evacuation time: 12.99 s

Evacuation times

Show code cell source

Hide code cell source

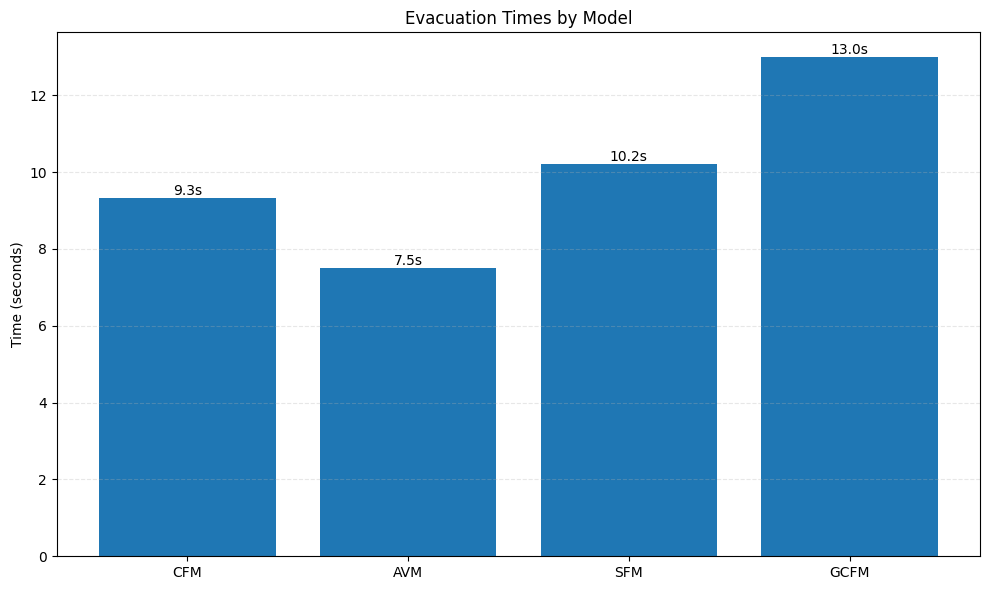

fig = plot_evacuation_times(times_dict)
plt.show()

Scenario 5: Movement of individuals in a bottleneck

Agents are initialized in a semicircular formation surrounding a bottleneck. For reference, see this experiment.

Show code cell source

Hide code cell source

def create_geometry_scenario5():
    # Outer boundary
    outer = [(-5, -5), (5, -5), (5, 5), (-5, 5)]

    # Inner holes (from the second polygon)
    hole1 = [(0.5, 0), (4.0, 0), (4.0, 1), (1.5, 1), (0.5, 2), (0.5, 0)]
    hole2 = [(-0.5, 0), (-4.0, 0), (-4.0, 1), (-1.5, 1), (-0.5, 2), (-0.5, 0)]

    # Create polygon with holes
    geometry = Polygon(shell=outer, holes=[hole1, hole2])
    return geometry


def define_positions_scenario5():
    """Define initial positions and desired speeds."""
    positions = [
        (-4, -0.5),
        (-3.5, -2),
        (-2, -3.5),
        (0, -4),
        (2, -3.5),
        (3.5, -2),
        (4, -0.5),
    ]
    speeds = 7 * [1.0]
    return positions, speeds


def define_goals_scenario5():
    """Define 7 goals polygons."""
    goals = 7 * [Polygon([(-0.3, 1.5), (0.3, 1.5), (0.3, 2.0), (-0.3, 2)])]
    return goals


geometry = create_geometry_scenario5()
positions, speeds = define_positions_scenario5()
goals = define_goals_scenario5()

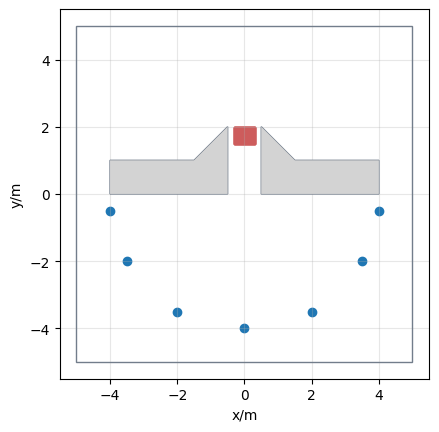

plot_simulation_configuration(geometry, positions, goals)
times_dict = {}

CSM Simulation

model = "CFM"
trajectory_file = f"{model}.sqlite"
simulation = initialize_simulation(
    jps.CollisionFreeSpeedModelV2(),
    jps.CollisionFreeSpeedModelV2AgentParameters,
    geometry,
    goals,
    positions,
    speeds,
    trajectory_file,
)
times_dict[model] = run_simulation(simulation, max_iterations=2000)
trajectories, walkable_area = read_sqlite_file(trajectory_file)
animate(
    trajectories,
    walkable_area,
    title_note=model,
    every_nth_frame=5,
    width=width,
    height=height,
)

Evacuation time: 10.18 s

AVM Simulation

model = "AVM"
trajectory_file = f"{model}.sqlite"
simulation = initialize_simulation(
    jps.AnticipationVelocityModel(),
    jps.AnticipationVelocityModelAgentParameters,
    geometry,
    goals,
    positions,
    speeds,
    trajectory_file,
)
times_dict[model] = run_simulation(simulation, max_iterations=2000)
trajectories, walkable_area = read_sqlite_file(trajectory_file)
animate(
    trajectories,
    walkable_area,
    title_note=model,
    every_nth_frame=5,
    width=width,
    height=height,
)

Evacuation time: 12.21 s

SFM Simulation

model = "SFM"
trajectory_file = f"{model}.sqlite"
simulation = initialize_simulation(
    jps.SocialForceModel(),
    jps.SocialForceModelAgentParameters,
    geometry,
    goals,
    positions,
    speeds,
    trajectory_file,
)
times_dict[model] = run_simulation(simulation, max_iterations=2000)
trajectories, walkable_area = read_sqlite_file(trajectory_file)
animate(
    trajectories,
    walkable_area,
    title_note=model,
    every_nth_frame=5,
    width=width,
    height=height,
)

/tmp/ipykernel_3216/1762482793.py:49: DeprecationWarning:

'desiredSpeed' is deprecated, use 'desired_speed' instead.

SocialForceModelAgentParameters(position=(-4, -0.5), orientation=array([4.  , 2.25]), journey_id=19, stage_id=55, velocity=(0.0, 0.0), mass=80.0, desired_speed=1.0, reaction_time=0.5, agent_scale=2000, obstacle_scale=2000, force_distance=0.08, radius=0.3)
SocialForceModelAgentParameters(position=(-3.5, -2), orientation=array([3.5 , 3.75]), journey_id=19, stage_id=56, velocity=(0.0, 0.0), mass=80.0, desired_speed=1.0, reaction_time=0.5, agent_scale=2000, obstacle_scale=2000, force_distance=0.08, radius=0.3)
SocialForceModelAgentParameters(position=(-2, -3.5), orientation=array([2.  , 5.25]), journey_id=19, stage_id=57, velocity=(0.0, 0.0), mass=80.0, desired_speed=1.0, reaction_time=0.5, agent_scale=2000, obstacle_scale=2000, force_distance=0.08, radius=0.3)
SocialForceModelAgentParameters(position=(0, -4), orientation=array([-0.  ,  5.75]), journey_id=19, stage_id=58, velocity=(0.0, 0.0), mass=80.0, desired_speed=1.0, reaction_time=0.5, agent_scale=2000, obstacle_scale=2000, force_distance=0.08, radius=0.3)
SocialForceModelAgentParameters(position=(2, -3.5), orientation=array([-2.  ,  5.25]), journey_id=19, stage_id=59, velocity=(0.0, 0.0), mass=80.0, desired_speed=1.0, reaction_time=0.5, agent_scale=2000, obstacle_scale=2000, force_distance=0.08, radius=0.3)
SocialForceModelAgentParameters(position=(3.5, -2), orientation=array([-3.5 ,  3.75]), journey_id=19, stage_id=60, velocity=(0.0, 0.0), mass=80.0, desired_speed=1.0, reaction_time=0.5, agent_scale=2000, obstacle_scale=2000, force_distance=0.08, radius=0.3)
SocialForceModelAgentParameters(position=(4, -0.5), orientation=array([-4.  ,  2.25]), journey_id=19, stage_id=61, velocity=(0.0, 0.0), mass=80.0, desired_speed=1.0, reaction_time=0.5, agent_scale=2000, obstacle_scale=2000, force_distance=0.08, radius=0.3)
Evacuation time: 20.00 s

GCFM Simulation

model = "GCFM"
trajectory_file = f"{model}.sqlite"
simulation = initialize_simulation(
    jps.GeneralizedCentrifugalForceModel(),
    jps.GeneralizedCentrifugalForceModelAgentParameters,
    geometry,
    goals,
    positions,
    speeds,
    trajectory_file,
)
times_dict[model] = run_simulation(simulation, max_iterations=2000)
trajectories, walkable_area = read_sqlite_file(trajectory_file)
animate(
    trajectories,
    walkable_area,
    title_note=model,
    every_nth_frame=5,
    width=width,
    height=height,
)

Evacuation time: 20.00 s

Evacuation times

Show code cell source

Hide code cell source

fig = plot_evacuation_times(times_dict)
plt.show()
