Leader–Follower Dynamics with Direct Steering

This notebook can be directly downloaded here to run it locally.

It demonstrates the use of direct steering of agents.

An agent (leader) embarks on a journey defined by specific waypoints and a final destination. Meanwhile, the remaining agents trail behind, constantly adjusting their course to align with the leader’s current position.

import pathlib
import random

import jupedsim as jps
import pedpy
from matplotlib.patches import Circle
from shapely import GeometryCollection, Point, Polygon

area = GeometryCollection(Polygon([(0, 0), (28, 0), (28, 10), (0, 10)]))
walkable_area = pedpy.WalkableArea(area.geoms[0])

Definition of Start Positions and Exit

Now we define the spawning area and way points for the leader to follow.

num_agents = 5
spawning_area = Polygon([(0, 0), (2, 0), (2, 10), (0, 10)])
pos_in_spawning_area = jps.distributions.distribute_by_number(
    polygon=spawning_area,
    number_of_agents=num_agents,
    distance_to_agents=0.8,
    distance_to_polygon=0.15,
    seed=1,
)
exit_area = Polygon([(27, 4.5), (28, 4.5), (28, 5.5), (27, 5.5)])
waypoints = [
    (8, 8),
    (8, 2),
    (4, 2),
    (4, 8),
    (18, 2),
    (18, 8),
    (23, 2),
    (23, 8),
]
distance_to_waypoints = 0.5

Show code cell source

Hide code cell source

def plot_simulation_configuration(
    walkable_area, spawning_area, starting_positions, exit_area
):
    axes = pedpy.plot_walkable_area(walkable_area=walkable_area)
    axes.fill(*exit_area.exterior.xy, color="indianred")
    axes.scatter(*zip(*starting_positions), s=1)
    axes.set_xlabel("x/m")
    axes.set_ylabel("y/m")
    axes.set_aspect("equal")
    for idx, waypoint in enumerate(waypoints):
        axes.plot(waypoint[0], waypoint[1], "ro")
        axes.annotate(
            f"WP {idx + 1}",
            (waypoint[0], waypoint[1]),
            textcoords="offset points",
            xytext=(10, -15),
            ha="center",
        )
        circle = Circle(
            (waypoint[0], waypoint[1]),
            distance_to_waypoints,
            fc="red",
            ec="red",
            alpha=0.1,
        )
        axes.add_patch(circle)

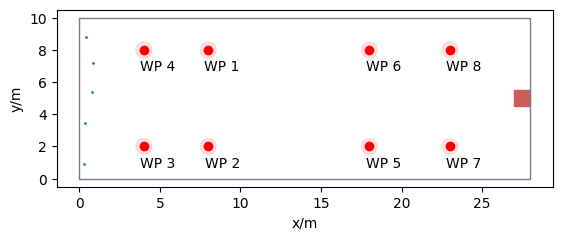

plot_simulation_configuration(
    walkable_area, spawning_area, pos_in_spawning_area, exit_area
)

Specification of Parameters und Running the Simulation

Now we just need to define the details of the operational model as well as the exit.

trajectory_file = "output.sqlite"  # output file
simulation = jps.Simulation(
    model=jps.GeneralizedCentrifugalForceModel(
        max_neighbor_repulsion_force=10,
        max_neighbor_interaction_distance=2,
        max_neighbor_interpolation_distance=0.1,
        strength_neighbor_repulsion=0.3,
        max_geometry_repulsion_force=3,
    ),
    geometry=area,
    trajectory_writer=jps.SqliteTrajectoryWriter(
        output_file=pathlib.Path(trajectory_file)
    ),
)
exit_id = simulation.add_exit_stage(exit_area.exterior.coords[:-1])

Define Journey for leader

waypoint_ids = [
    simulation.add_waypoint_stage(waypoint, distance_to_waypoints)
    for waypoint in waypoints
]
journey_leader = jps.JourneyDescription([*waypoint_ids, exit_id])
for i, waypoint_id in enumerate(waypoint_ids):
    journey_leader.set_transition_for_stage(
        waypoint_id,
        jps.Transition.create_fixed_transition(
            waypoint_ids[i + 1] if i + 1 < len(waypoint_ids) else exit_id
        ),
    )
journey_id = simulation.add_journey(journey_leader)

Define Journey for followers

direct_steering_stage = simulation.add_direct_steering_stage()
direct_steering_journey = jps.JourneyDescription([direct_steering_stage])
direct_steering_journey_id = simulation.add_journey(direct_steering_journey)

Add agents

First, add leader, then its followers.

leader_id = simulation.add_agent(
    jps.GeneralizedCentrifugalForceModelAgentParameters(
        journey_id=journey_id,
        stage_id=waypoint_ids[0],
        position=pos_in_spawning_area[0],
        desired_speed=1.0,
        b_min=0.1,
        b_max=0.2,
        a_min=0.1,
        a_v=0.2,
        orientation=(1, 0),
    )
)
# Followers
followers_ids = set(
    [
        simulation.add_agent(
            jps.GeneralizedCentrifugalForceModelAgentParameters(
                journey_id=direct_steering_journey_id,
                stage_id=direct_steering_stage,
                position=pos,
                desired_speed=0.8,
                b_min=0.1,
                b_max=0.2,
                a_min=0.1,
                a_v=0.2,
                orientation=(1, 0),
            )
        )
        for pos in pos_in_spawning_area[1:]
    ]
)

Simulation loop

while simulation.agent_count() > 0:
    # Find leader's position
    if leader_id in simulation.removed_agents():
        leader_id = None
    if leader_id:
        position_leader = simulation.agent(leader_id).position

    # Move followers towards leader
    for agent in simulation.agents():
        if agent.id == leader_id:
            continue
        # Define a target position near the leader with some randomness
        near_leader = (
            position_leader[0] + random.normalvariate(1, 0.1),
            position_leader[1] + random.normalvariate(1, 0.1),
        )
        near_leader_point = Point(near_leader[0], near_leader[1])

        # If the target position is inside the walkable area, set it as the agent's target
        target = (
            near_leader
            if any(geom.contains(near_leader_point) for geom in area.geoms)
            else position_leader
        )
        agent.target = target

        # Check if the agent reached the exit and mark it for removal if so
        if Point(agent.position).distance(exit_area.centroid) < 1:
            simulation.mark_agent_for_removal(agent.id)

    simulation.iterate()
simulation._writer.close()

Visualization

Let’s have a look at the visualization of the simulated trajectories:

from jupedsim.internal.notebook_utils import animate, read_sqlite_file

trajectory_data, walkable_area = read_sqlite_file(trajectory_file)
animate(trajectory_data, walkable_area, every_nth_frame=10)
